Complete Installation Guide for WF315 Smart Water Fountain
Date: 2025-10-22 Categories: Guides Hits: 369
Complete Installation Guide for WF315 Smart Pet Water Fountain
A comprehensive guide to set up and maintain your smart pet fountain for optimal performance
Table of Contents
1. Introduction

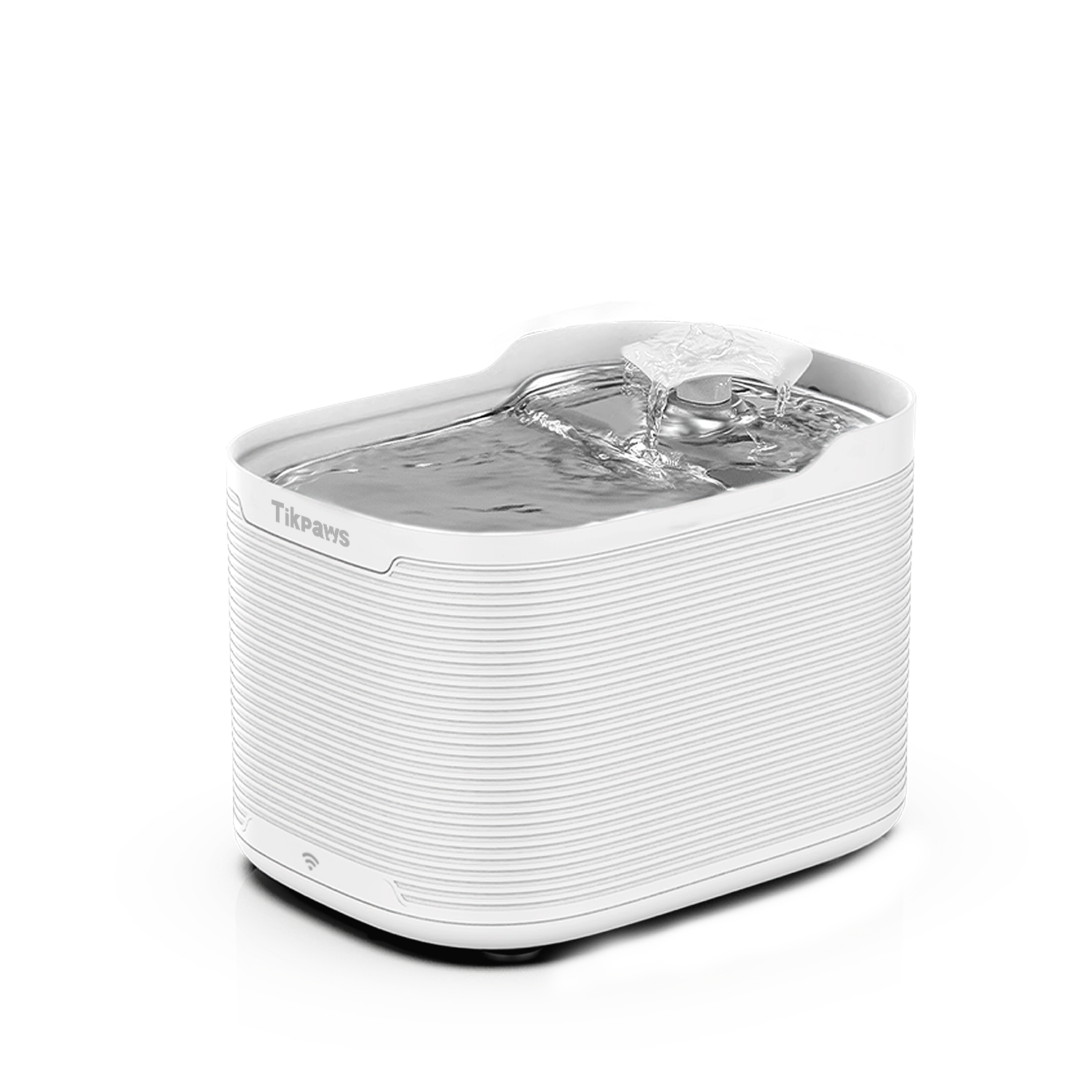

The Tikpaws WF315 Smart Pet Water Fountain is designed to provide clean, flowing water for your pets through intelligent circulation and filtration. With dual power supply (battery + adapter), app control, and UV sterilization options, it ensures that your pet stays hydrated safely and conveniently.
This smart fountain features motion sensors that detect when your pet approaches, activating water flow to encourage drinking. The multi-stage filtration system removes impurities and odors, while optional UV sterilization provides an extra layer of cleanliness.
2. Safety Precautions
Before installation, carefully read the safety notes:
For indoor use only; avoid exposure to extreme temperatures or moisture.
Do not run the fountain without water, as it may damage the pump.
Keep children and pets away from small parts and packaging materials.
Do not immerse the base or power adapter in water during cleaning.
Replace the filter every two weeks, or more frequently for multi-pet households.
Only the stainless-steel tray can go into the dishwasher. Other parts should be hand-washed.
Unplug the fountain before cleaning or replacing parts.
Keep the power cord away from heated surfaces and sharp edges.

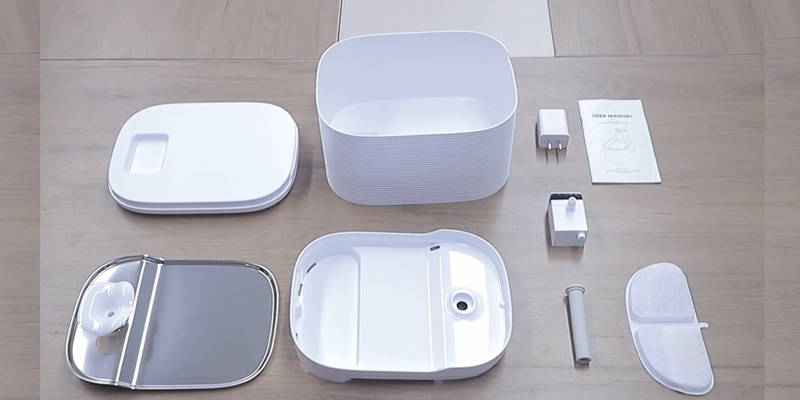

3. Unboxing & Inspection
Before installation:
Confirm all parts are included according to the manual.
Check for visible damage to the power adapter, base, or tank.
Ensure the charging base, tank, stainless steel tray, filter tray, and filter are all present.
Verify that the power cord is not frayed or damaged.
4. Cleaning and Preparation
Before first use:

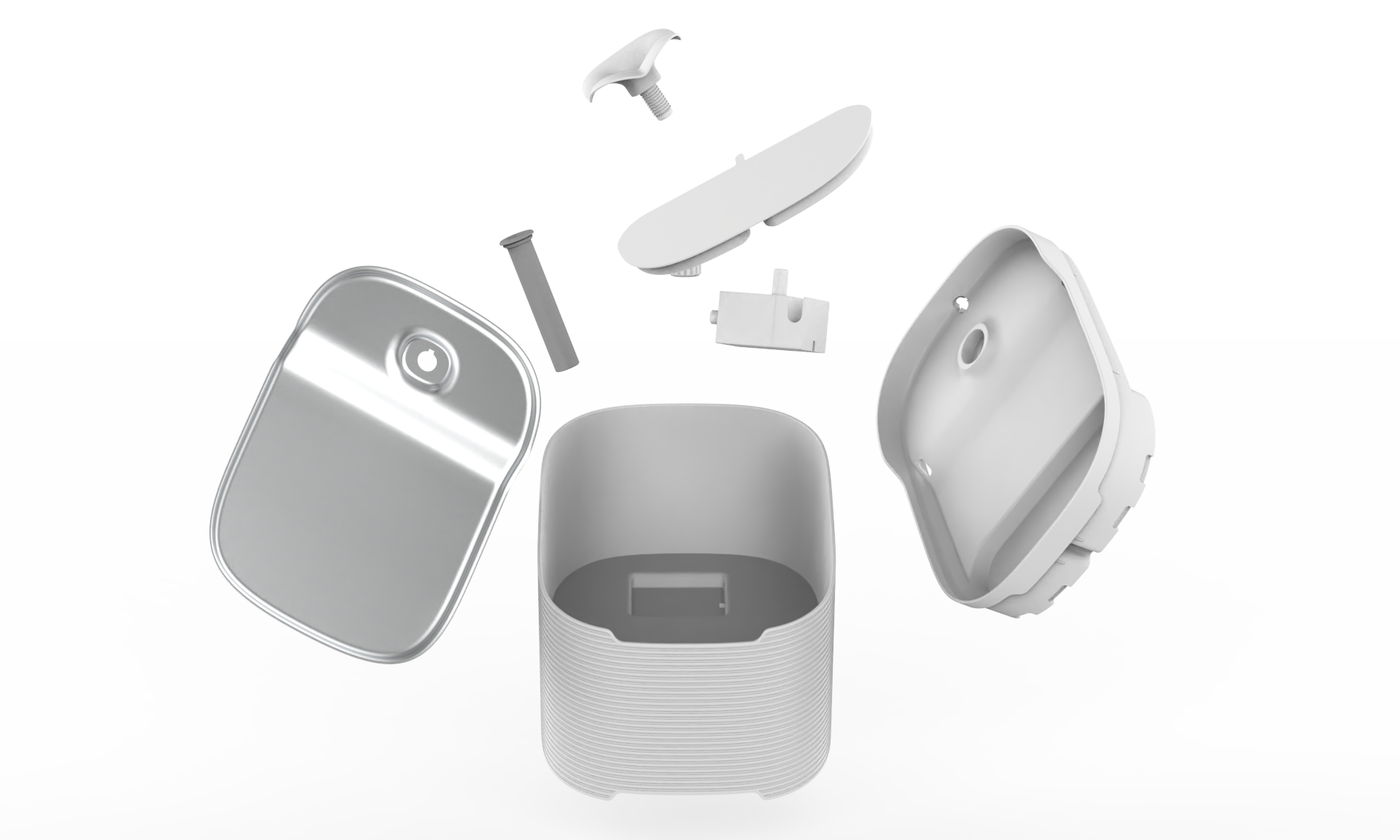

Wash all removable parts (except the battery base) with mild soap and water.
Soak the filter in clean water for at least 5 minutes.
Why: Soaking helps the filter expand and remove air bubbles, ensuring smooth water flow and preventing overflow during initial operation.
Rinse the tank and tray thoroughly before assembly.
5. Installation Steps
Assemble the pump:

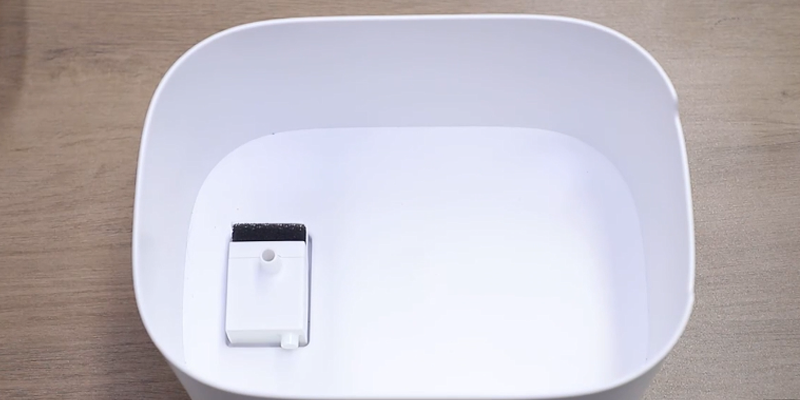

Insert the foam filter into the pump groove and align the pump with the bottom slot. Ensure the recessed parts fit snugly.

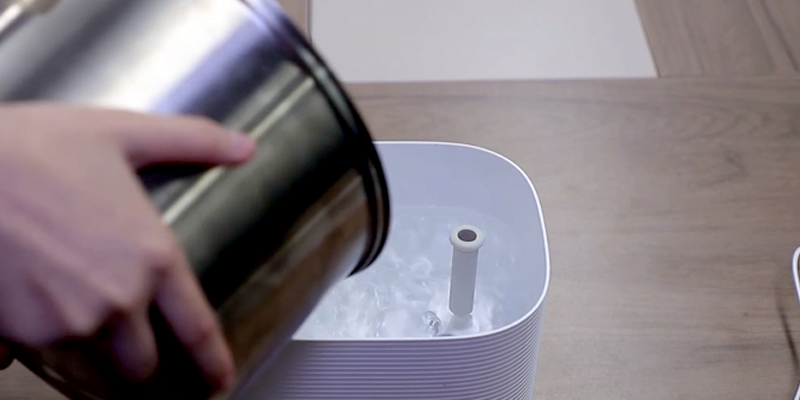

Attach the silicone pipe and fill the tank with clean water (do not exceed the MAX line).

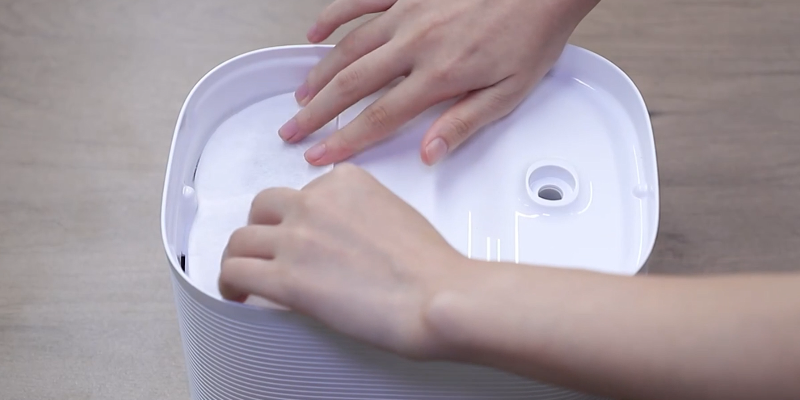

Place the plastic filter tray, then insert the soaked filter into position.

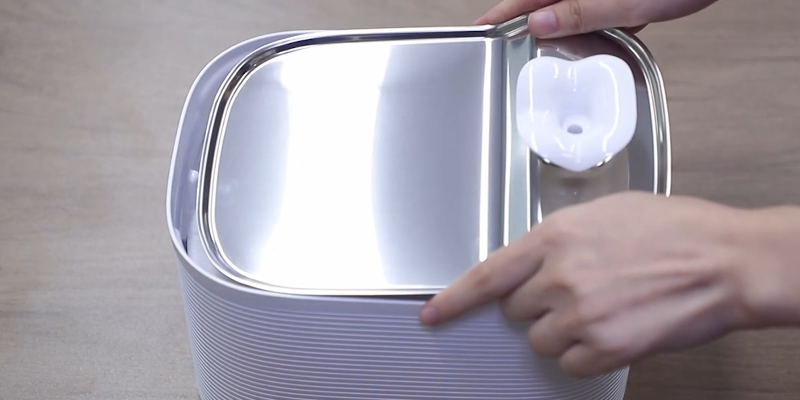

Install the stainless steel water tray and screw on the nozzle (spray head).
Connect the charging cable to the base. For first-time use, fully charge the base before unplugging.
If you need to use it immediately, keep the cable connected while the battery charges.
Turn on the power switch on the base. The LED indicator will light up.

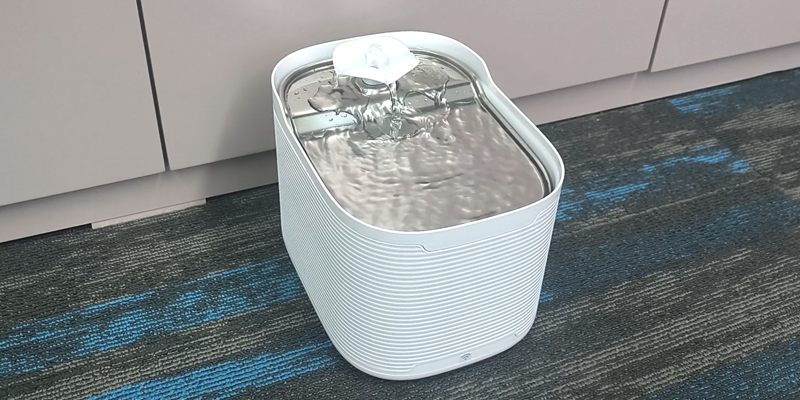

Position the fountain near a wall (the back side does not sense pets) and on a flat surface.
6. Wi-Fi & App Connection (Tuya Smart or Smart Life)
To control the fountain remotely:
Download Tuya Smart or Smart Life from the App Store or Google Play.

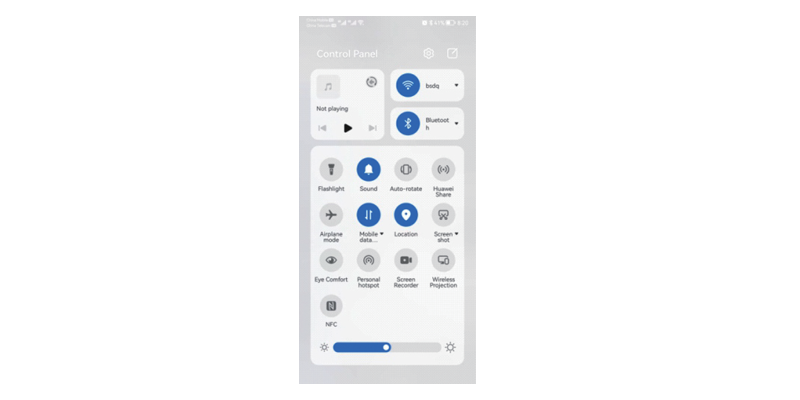

Enable Bluetooth and Wi-Fi (2.4GHz) on your phone.
Register or log into your account.

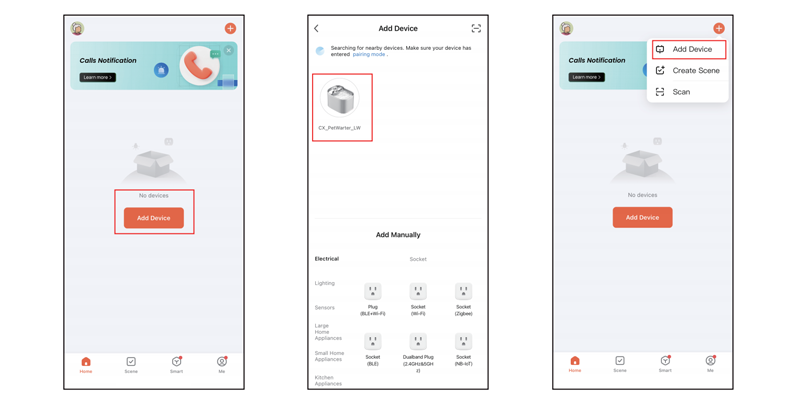

Tap the "+" icon → Add Device → Select Pet Water Fountain.

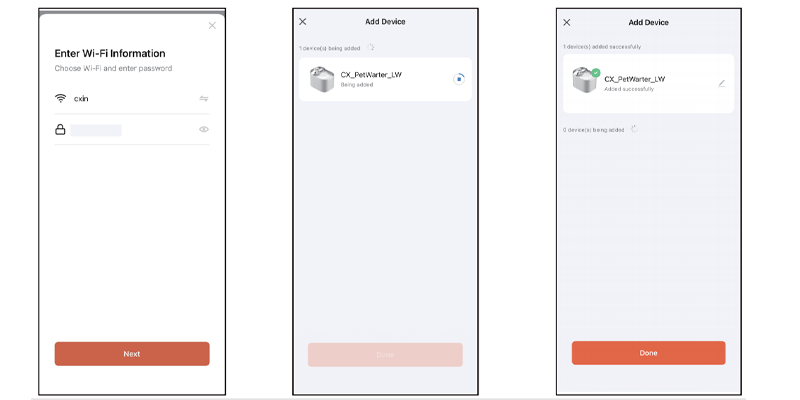

Enter your Wi-Fi credentials and confirm.
Wait for the device to pair successfully.

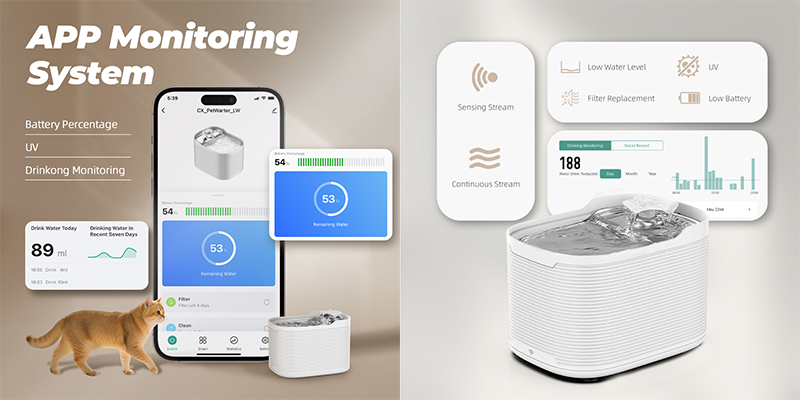

Once connected, you can customize settings such as UV sterilization, flow modes, and filter reminders.
7. Working Modes Overview
The WF315 has two main modes:
Normal Mode: Continuous 24-hour water circulation.
Induction Mode: Automatically dispenses water for 30 seconds when pet movement is detected (within 80cm on three sides).
Tip: Place the back of the fountain against a wall to ensure the sensor detects pets correctly.
8. Battery & Power Tips
Built-in rechargeable lithium battery (non-removable).
Charge fully before first use.
Battery life: 30 days depending on usage mode.
Induction mode extends battery life compared to continuous mode.
If unused for long periods, recharge every 6 months to preserve battery life.
Avoid temperatures below 0°C (32°F) or above 60°C (140°F).
Always use the included power adapter (5V/1A).
Red LED indicates low battery; solid green indicates full charge.
9. Maintenance & Cleaning
Clean the pump and spout every 2 weeks using the included brush.
Replace filters every 2 weeks, or sooner if the flow slows down.
Do not immerse the battery base in water.
Only the stainless steel top can be cleaned in the dishwasher.
Wipe the sensor lens periodically to ensure proper detection.
Empty and refill water at least once weekly, more often in warm climates.
Descale monthly using a 50/50 vinegar and water solution if you have hard water.
10. Troubleshooting Guide
| Problem | Solution |
|---|---|
| Water overflowing | The filter wasn't soaked long enough. Soak it for 5 mins before use. |
| Pump stops working | Ensure water is between MIN and MAX; clean the pump and basin. |
| No water flow | Check if the tank, base, and pump are aligned correctly. |
| Low water alert | Refill water to the MAX line. |
| Black residue in tank | Replace water regularly and pre-soak the filter before reuse. |
| App not connecting | Ensure you're using 2.4GHz Wi-Fi; reset device by pressing power 5x. |
| Sensor not detecting pet | Clean sensor lens; ensure back is against wall; check detection range. |
| Excessive noise | Ensure fountain is on level surface; check water level; clean pump impeller. |
11. Specifications
| Parameter | Description |
|---|---|
| Model | WF315 |
| Power Adapter | Input: 100-240V 50/60Hz / Output: 5V 1A |
| Material | ABS + SUS304 Stainless Steel |
| Capacity | 2.5L |
| Dimensions | 230.6 × 170.1 × 162.6 mm |
| Net Weight | 1.03 kg |
| Battery Capacity | 5200mAh |
| Sensor Range | Up to 80cm (three sides) |
| Wi-Fi Connectivity | 2.4GHz |
12. FAQs
Q1. Why must the filter be soaked before use?
Because dry filters block water flow. Soaking expands the fibers, removes dust, and prevents overflow during first use.
Q2. How often should I replace the filter?
Every 2 weeks, or sooner if the flow rate drops or multiple pets are using the fountain.
Q3. Can I run the fountain without power?
Yes. The built-in battery allows cordless operation once charged.
Q4. Why isn't the Wi-Fi connecting?
Ensure you're on a 2.4GHz network, not 5GHz. Reset Wi-Fi by pressing the button 5 times until the green light flashes.
Q5. Which parts are dishwasher-safe?
Only the stainless steel tray and its connected components.
Q6. Why does my fountain make noise?
Low water level or trapped air in the pump. Refill water and let it circulate for a few minutes.
Q7. What's the sensing range of the pet detector?
Up to 80cm on three sides (not the back). Place the back against the wall for best performance.
Q8. How long does the battery last on a full charge?
30 days depending on usage. Induction mode conserves more power than continuous mode.
